358 Security Fence – Anti-climb Fence

Description:

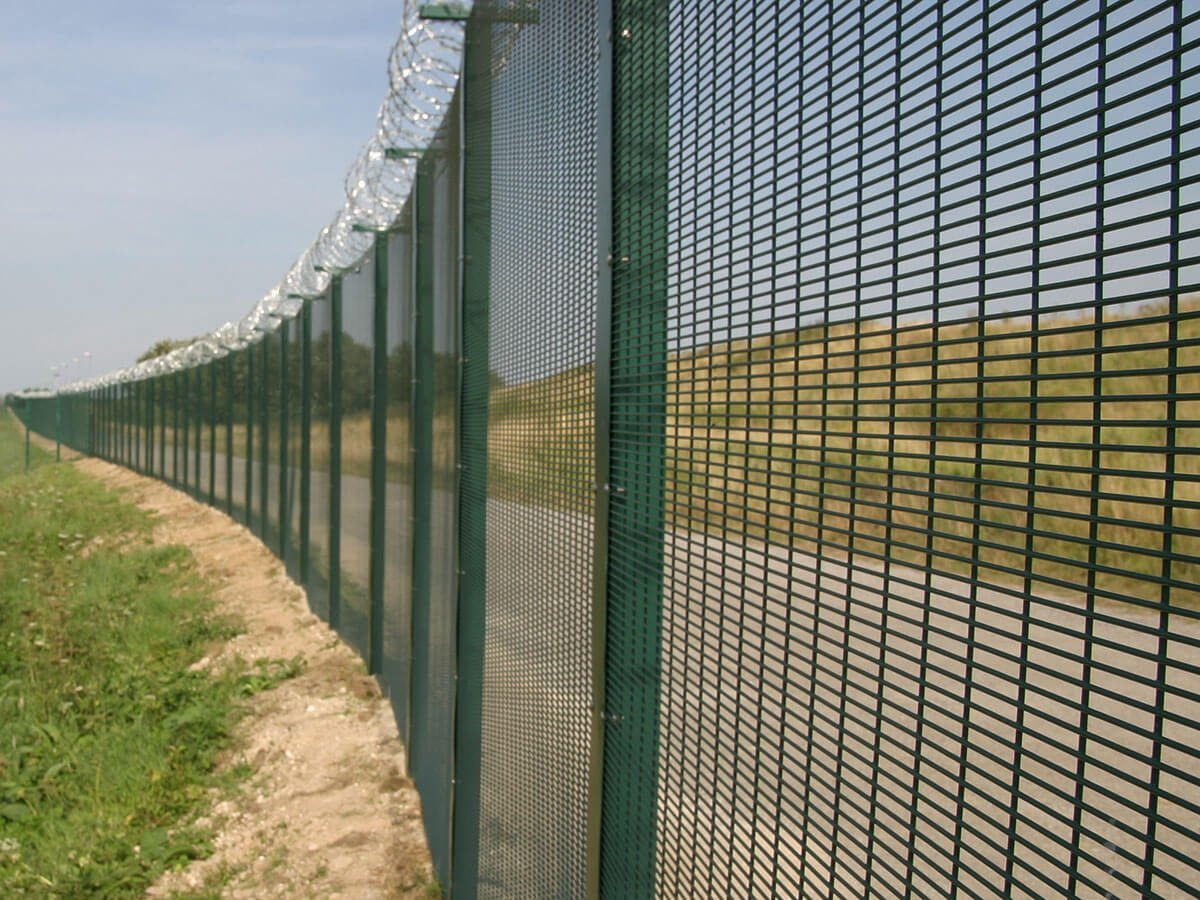

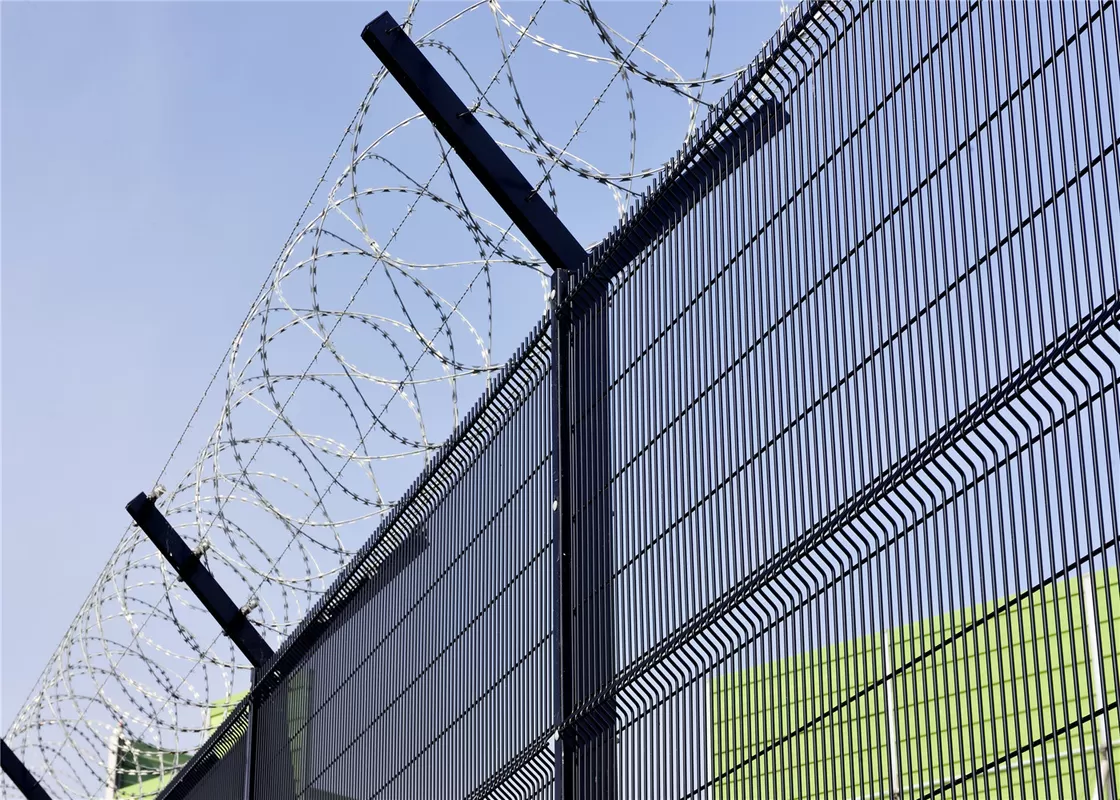

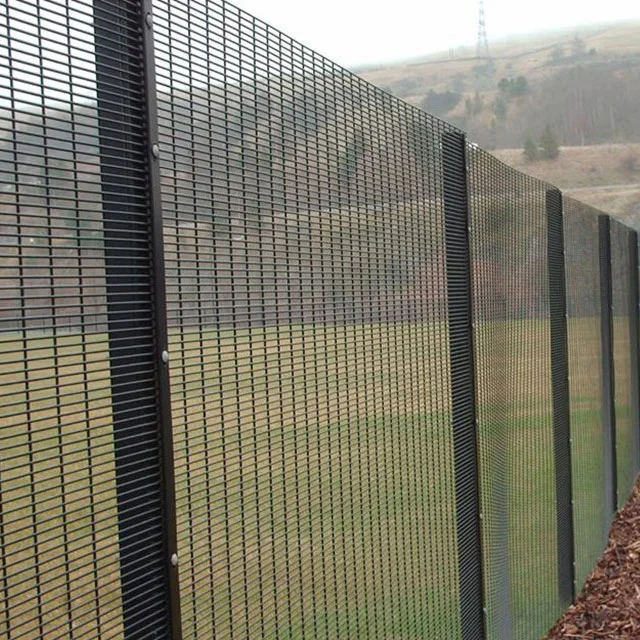

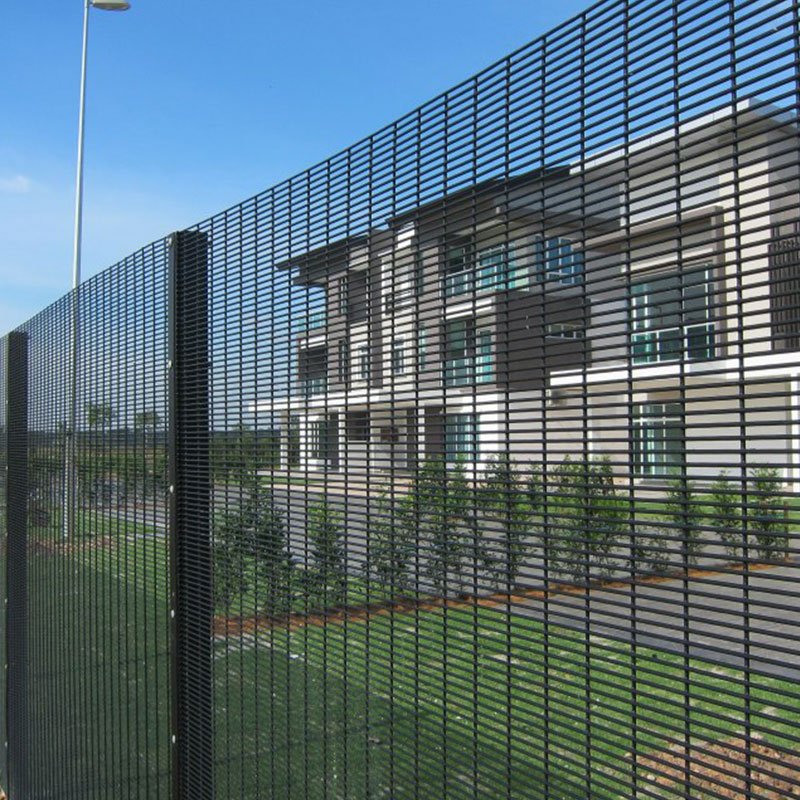

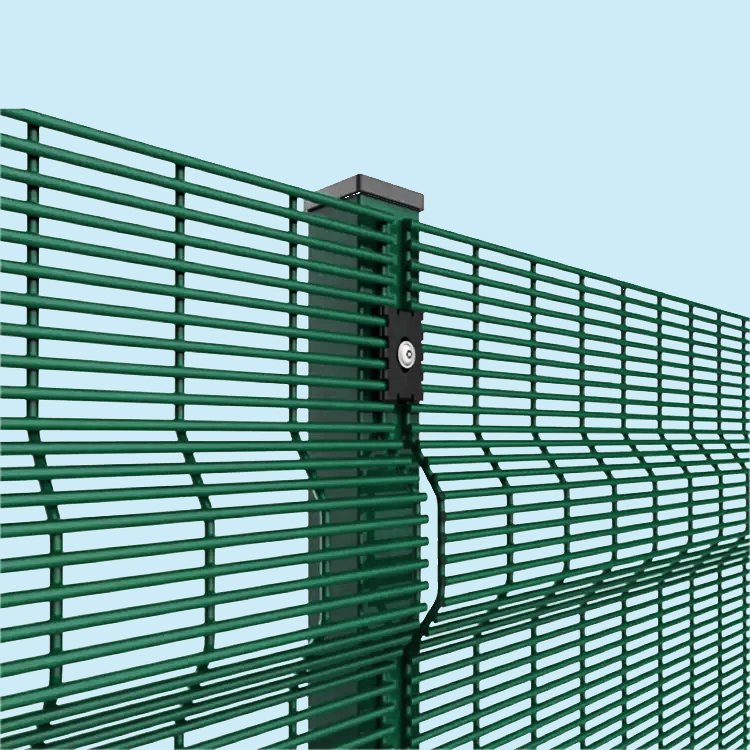

358 mesh fence is featured by the design that combines the high security and perfect aesthetic effect. Panel sections are welded wire mesh with small rectangular openings 76.2 mm × 12.7 mm made from 4 mm galfan steel wires, and welded well at each intersection, then PVC powder coating with green RAL 6005 or black RAL 9005 color, which provides a protective anti-corrosion property for 10 years. The high security 358 welded mesh fencing is extremely difficult to penetrate and difficult to attack by using conventional tools. Because of the anti-climbing and anti-cutting features, 358 welded mesh security fencing is also called anti climb fence. It is usually used for fencing where require high levels of security, such as airport, prison and military establishments, so 358 mesh is also called prison fencing. This kind of welded panel width is 2515 mm and height from 2007 mm to 3302 mm. Several panels can be installed on the top of each other, thus the 358 mesh fencing can achieve a total height of 6300 mm.

358 mesh fence features:

• Anti-climbing: more small openings, no toe or finger holds.
• Anti-cut: robust wire and welded joints make cutting very difficult by bolt cutters and wire cutters.
• High strength welded at each intersection.
• Durable: covering Galfan and polymer powder coating ensure a long service life.
• Mesh fencing specially configured to provide maximum visibility, especially used for emergency and electronic detection systems.

358 mesh panel size:

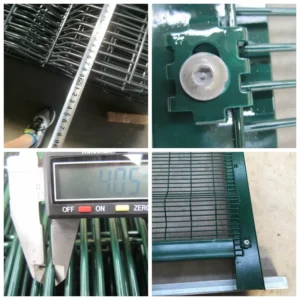

• Mesh pattern: 76.2 mm (3″) × 12.7 mm (0.5″) resistance welded well at each intersection.
• Wire diameter: 4 mm horizontal wire and vertical Wire.
• Weld strength: range 540–690 N/m².
• Surface treatment: 358 mesh fence panels made from galfan wire, then PVC powder coating (Min. 100 micron), or PVC powder painting. It provides additional protection and increases the potential life span.
• Colors: Green RAL 6005, or Black RAL 9005.

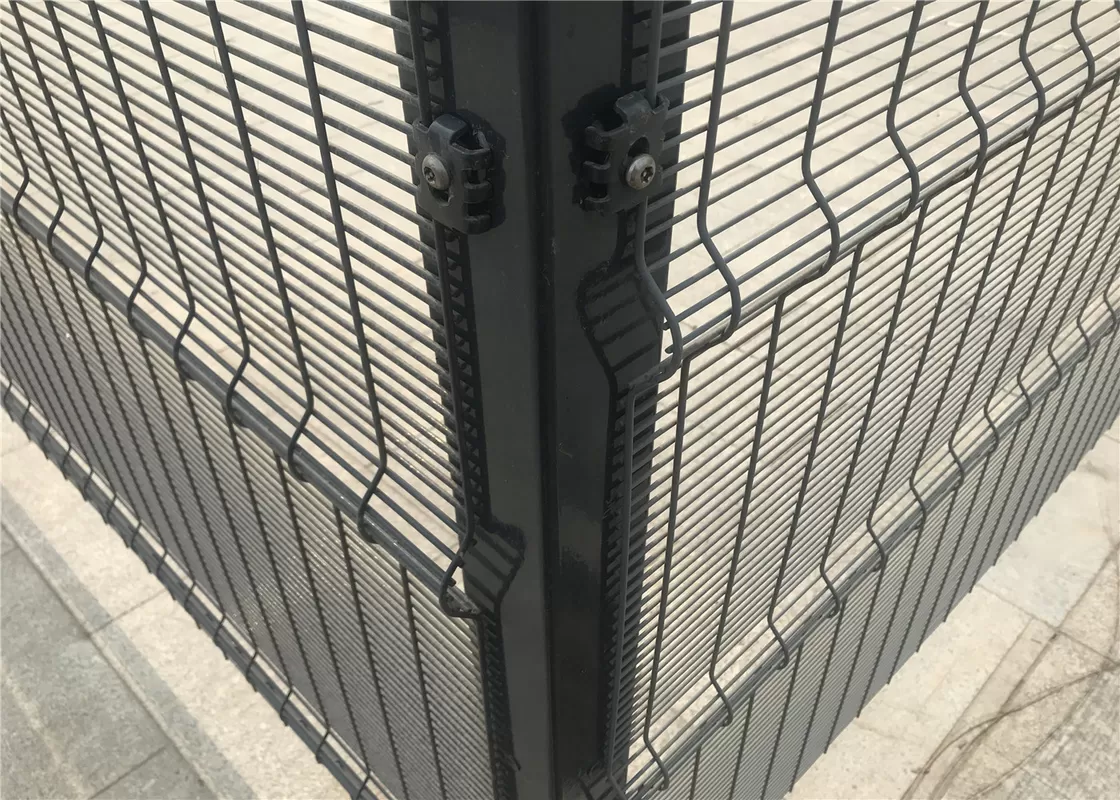

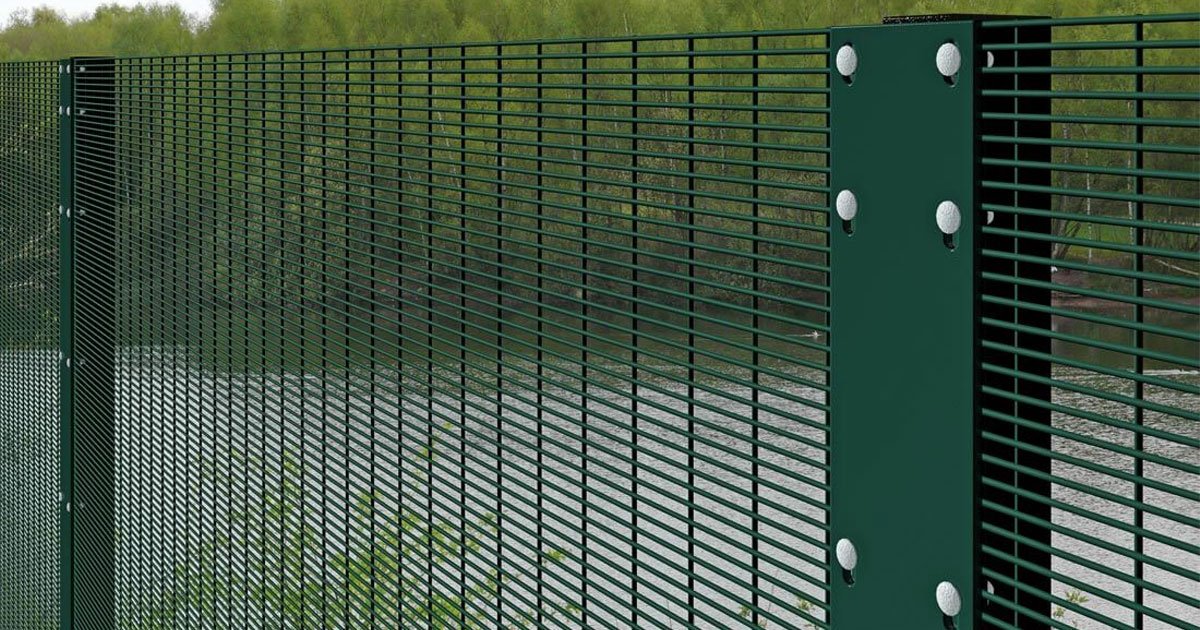

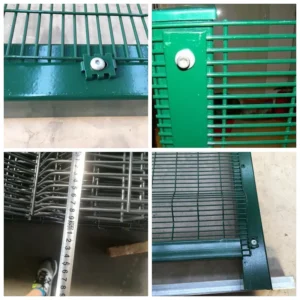

• Installation: Overlapped 75 mm minimum at each post (See pictures 358M-05 and 358M-06) for securing with slotted clamp bars and M8 diameter bolts.
