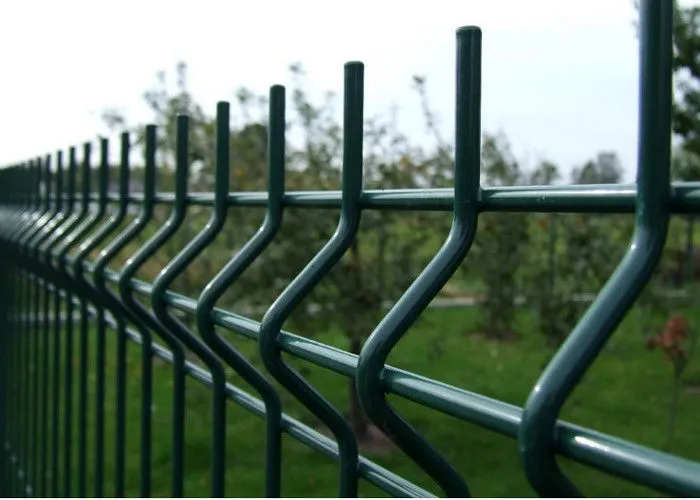

3D Welded Wire Fence

3D Welded Wire Fence is made by steel wire with a 4mm to 6mm wire gauge. According to the hole size the fencing is divided into different types. In order to improve the beauty and firm structure the bendings are added in the panels so the fence also named 3D welded wire fencing or Triangle Bending Welded Wire Fence.

Additional information

Wire Diamter	3.0 mm, 3.5 mm, 4.0 mm, 4.5mm, 5.0 mm
Height	630 mm, 830 mm, 1030 mm,1230 mm, 1430 mm, 1530 mm,1630 mm, 1730 mm, 1830 mm,1930 mm, 2030 mm, 2230mm, 2430 mm
Width	2000 mm, 2500 mm, 2900mm
Hole Size	50 × 100 mm, 50 × 150 mm, 50 × 200 mm, 75 × 100 mm, etc.
Material	Iron Metal
Surface Finishing	Powder Coated
Item No.	3d-001
Brand	Orange wire
Certification	ISO9001

Description:

1. The size of this 3D Welded Wire Fencing is 9 gauge wire ,2″ x 4″ hole size and 5′ x 7′.

2. 3D Welded Wire Fencing are applied in high security area where the fence is necessary or desirable.

Brif Introduction:

3D Welded Wire Fence is made by steel wire with a 4mm to 6mm wire gauge.According to the hole size the fencing is divided into different types. In order to improve the beauty and firm structure the bendings are added in the panels so the fence also named 3D welded wire fencing or Triangle Bending Welded Wire Fence.

Welded Mesh Fencing is a steel fence using wire strands welded together to form a high strength mesh. Welded wire mesh fences are used predominantly as high security barriers where visibility through the fence is necessary or desirable.

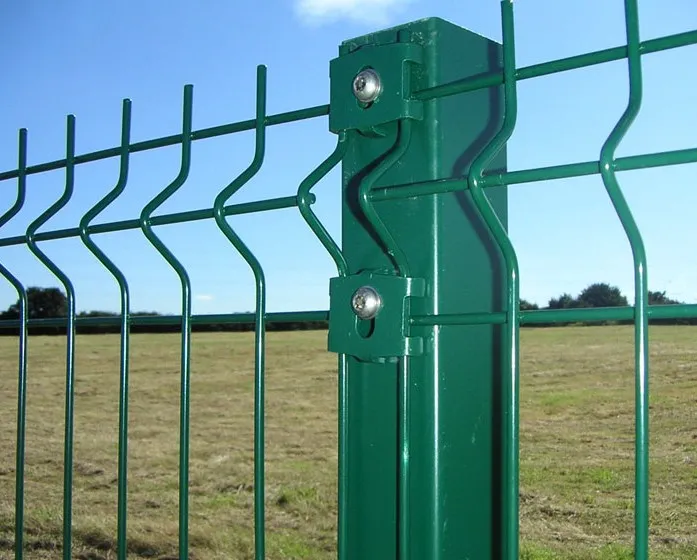

The Welded Mesh Fencing is a structure that circles the perimeter of an area to prevent access. These fences are frequently made out of single vertical metal bars connected at the top and bottom with a horizontal bar.Many kinds of Garden Fence Accessories are provided to install a good fence.Some customers choose T / Y / U Post because of the low cost. However,the most suitalbe post is round post or square post.

Due to the line welding processing, it has more firm structure and long lifetime. According to the material applied the fence is divide to Three CLASS.(CLASS1,2,3). The difference is the zinc rate.The Class 3 has the most heavy zinc rate so that it is better than the other two on corrosion.After the galvanized process then vinyl coating on the fence. This plastic layer provide a another protection to the fence and beautiful to look at.

Specification:

Wire Dia. mm	Mesh Size mm	Length mm	Height mm	Fold No.	Post Size mm
4.0 4.5 5.0 5.5	50×200 55×200 50×100 75×150	2000 2200 2500 3000	1030	2	Peach Post 50x70x1.2 70x100x1.2	CM Post 50x65x1.2 65x95x1.2	Square Post 50x50x1.5/2.0 60x60x1.5/2.0 80x80x1.5/2.0	Round Post 48×1.5/2.0 60×1.5/2.0
			1230	2
			1530	3
			1830	3
			2030	4
			2230	4
			2430	4
