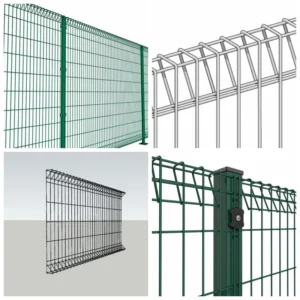

BRC fence, also known as roll top fence, is a kind of specially designed welded wire mesh fence with unique top and bottom “rolled” edges.
| Wire Diamter | 4.0 mm, 4.5 mm, 5.0 mm, 6.0mm |
|---|---|
| Height | 900–2400 mm |
| Width | 1500–3000 mm |
| Hole Size | 50 × 150 mm, 50 × 200 mm, 50 × 300 mm |
| Material | Iron Metal |
| Surface Finishing | Powder Coated |
| Item No. | BRC-001 |
| Brand | Orange wire |
| Certification | ISO9001 |
BRC fence, also known as roll top fence, is a kind of specially designed welded wire mesh fence with unique top and bottom “rolled” edges.
It is manufactured from high tensile steel wires that are welded together and bent to form a triangular roll top surface at its top and bottom to provide a firm structure and accurate mesh openings.
BRC Fence is made by steel wire with a 4mm to 6mm wire gauge. According to the hole size the fencing is divided into different types. In order to improve the beauty and firm structure the bendings are added in the panels so the fence also named 3D welded wire fencing or Triangle Bending Welded Wire Fence.

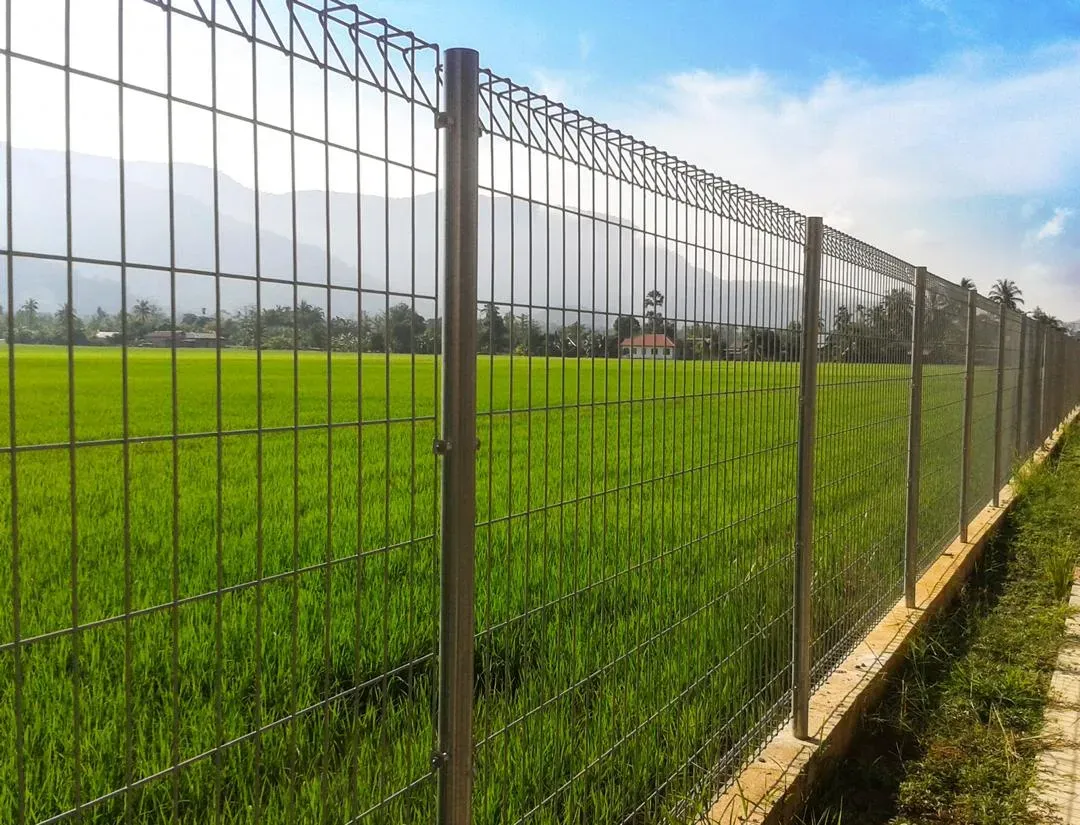

BRC fence is a steel fence using wire strands welded together to form a high strength mesh. Welded wire mesh fences are used predominantly as high security barriers where visibility through the fence is necessary or desirable.

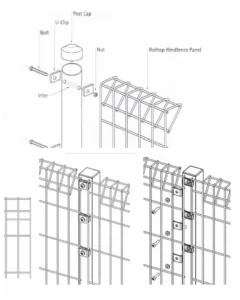

The Welded Mesh Fencing is a structure that circles the perimeter of an area to prevent access. These fences are frequently made out of single vertical metal bars connected at the top and bottom with a horizontal bar.Many kinds of Garden Fence Accessories are provided to install a good fence.Some customers choose T / Y / U Post because of the low cost. However,the most suitalbe post is round post or square post.
Due to the line welding processing, it has more firm structure and long lifetime. According to the material applied the fence is divide to Three CLASS.(CLASS1,2,3). The difference is the zinc rate.The Class 3 has the most heavy zinc rate so that it is better than the other two on corrosion.After the galvanized process then vinyl coating on the fence. This plastic layer provide a another protection to the fence and beautiful to look at.
|
Wire Dia. mm |
Mesh Size mm | Length mm | Height mm | Round Post Size | Surface Treatment | Common Colour |
| 4.0 4.5 5.0 |
50×100 50×150 50×200 75×200 |
2000 2200 2500 3000 |
900 | 48×1.5mm 60×1.5mm |
Hot dip galvanized, Electric galvanized then PVC coated, Electric galvanized then PE dip coated |
White RAL9010 Grey RAL3020 Green RAL6005 Black RAL 9005 |
| 1200 | ||||||
| 1500 | ||||||
| 1800 | ||||||
| 2000 | ||||||
| 2400 | ||||||
| 2430 |
