Crowd Control Barrier, also known as pedestrian barrier or crowd control barricade, is a perfect choice for guiding and restricting crowd and traffic flows to keep people and vehicles from entering restricted areas.
| Height | 1.1 m, 1.25 m, 1.5 m |
|---|---|
| Width | 2.0 m, 2.1 m, 2.2 m, 2.4 m, 2.5 m |
| Frame: | 32 × 1.2/1.5/2.0 mm, 38 × 1.2/1.5/2.0 mm, 42 × 1.2/1.5/2.0 mm, 48 × 1.2/1.5/2.0 mm |
| Spacing: | 60 mm, 100 mm, 120 mm, 150 mm, 200 mm |
| Inner Pipe: | 12 × 0.7 mm, 14 × 1.0 mm, 16 × 1.0 mm, 20 × 1.2 mm, 25 × 1.2 mm |
| Material | Metal |
| Item No. | Bar-tem-001 |
| Surface Treatment | Galvanzied |
| Certification | ISO9001 |
Crowd control barrier, also known as pedestrian barrier or crowd control barricade, is a perfect choice for guiding and restricting crowd and traffic flows to keep people and vehicles from entering restricted areas.
It is constructed of superior steel pipes and is hand welded for high strength. It is also provided with an interlocking design, which makes it can be easily hooked to another and create a long, continuous line of protection.
Crowd control barrier is widely used in construction sites and many public events, including but not limited to, sports events, concerts, parades, political rallies, demonstrations and outdoor festivals.
Appropriate positive barriers, both permanent pedestrian barriers and temporary pedestrian barriers, are used to discourage pedestrians from making dangerous, unauthorized movements into the restricted area.
Pedestrian Barriers (also known as Crowd Control Barriers ) are lightweight and ideal for keeping the public away from construction job sites.As a physical barrier, pedestrian barriers are also very popular in events and sports. They are an effective way to safely direct pedestrian traffic and prevent crowd pressure from reaching dangerous levels.
We pedestrian barrier series has brought several advantages for people working in construction sites public working sites to hazardous work zones.Except for the barrier system, this is complemented by a full installation and maintenance guide, with customized options available if required.
| Specifications | Normal Size |
| Panel Size (mm) | 914×2400, 1090×2000, 1090×2010, 940×2500 |
| Frame Tube (mm) | 20, 25, 32, 40, 42 OD |
| Frame Tube Thickness (mm) | 1.2, 1.5, 1.8, 2.0 |
| Vertical Tube (mm) | 12, 14, 16, 20 OD |
| Vertical Tube Thickness (mm) | 1.0, 1.2, 1.5 |
| Tube Space (mm) | 100, 120, 190, 200 |
| Surface Treatment | Hot dipped galvanized or Powder coated after welded |

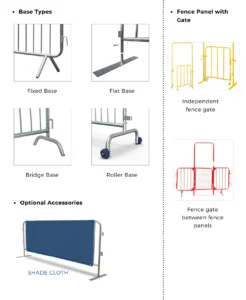

| Feet | Flat feet, Bridge feet and Tube feet |
