Hexagonal wire stucco netting, Self-furred zinc coated galvanized steel woven stucco netting is designed for use as reinforcement for cement wall systems.
| Hole Size | 1" x 1", 1-1/2" x 1-1/2" |
|---|---|
| Wire Diameter | 20 gauge, 17 gauge |
| Height | 36" |
| Length | 100', 150' |
| Item NO. | stu-hex |
| Brand | Orange Wire |
The 1″ (25.4mm) hexagonal mesh is formed with a reverse twist of 20 gauge (0.89mm) galvanized steel wire. 1″ stucco netting is furred at 3 inches (76mm) and 6 inches (152mm) on center horizontally and vertically, respectively.Hexagonal woven wire netting is specially for exterior wall coatings, can be supplied with paperback or not.

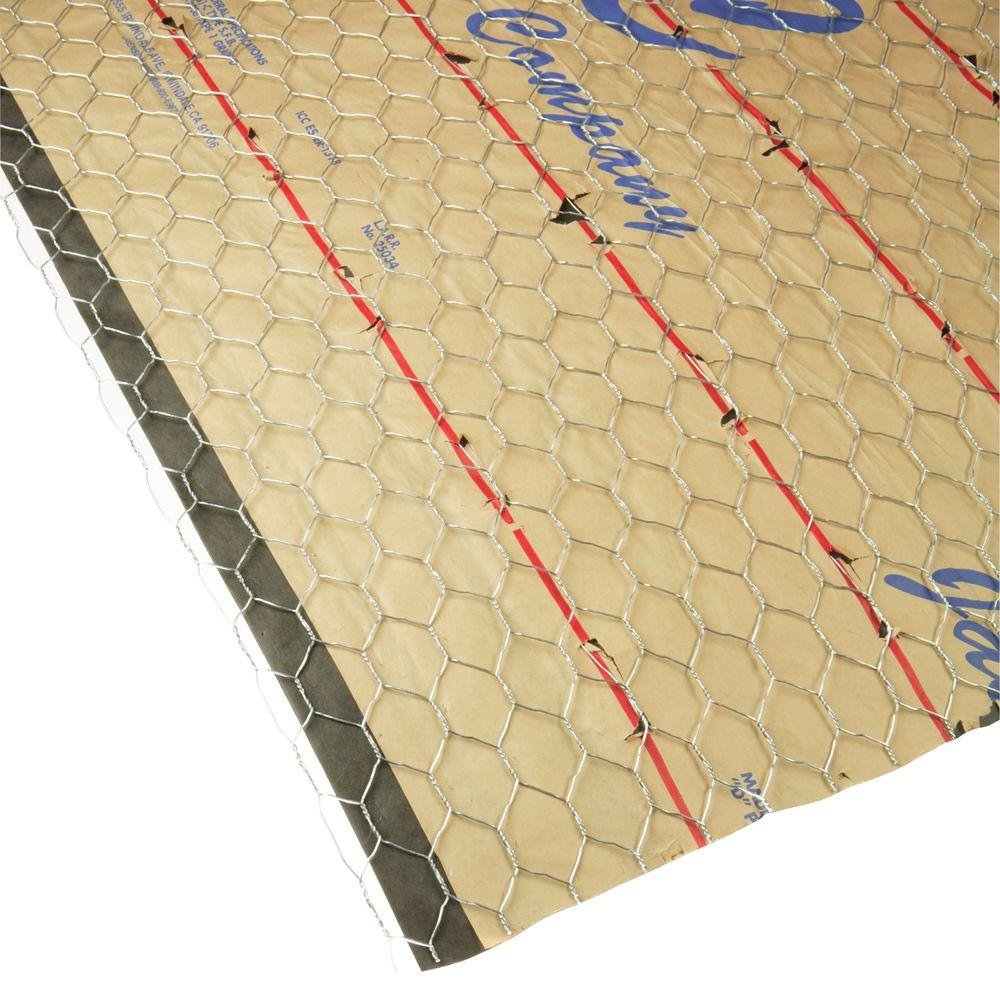

The zinc coated, galvanized woven wire Paperback Stucco Netting is made for building as reinforcement wire materials for cement, gypsum plaster, masonry veneer and ceramic tile. 1 1/2″ (38mm) x 17 gauge, 1/4″ self-furring woven wire in rolls, hexagonal mesh is formed with a twist of 17 gauge (1.38mm) galvanized steel wire. Paperback Stucco Netting is furred at 6″ (152mm) vertically.
1″ x 20 gauge woven wire for reinforcement of one-coat modified cement-based plaster.
AVAILABLE COATINGS: Galvanized wire for corrosion protection

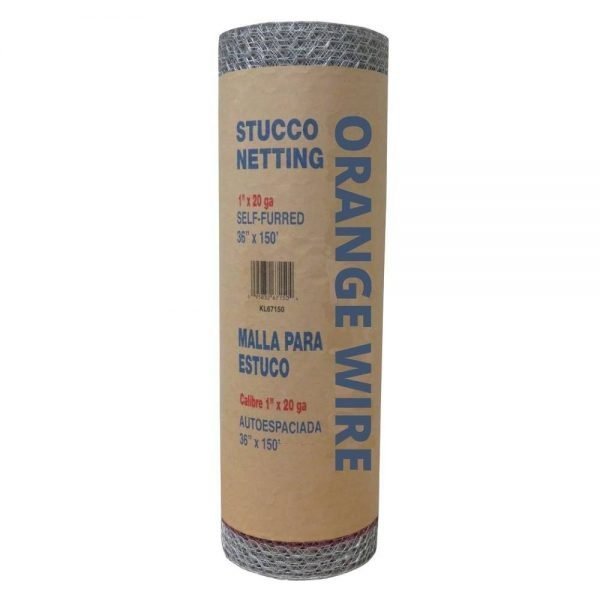

ROLL SIZES: 36″ x 150′

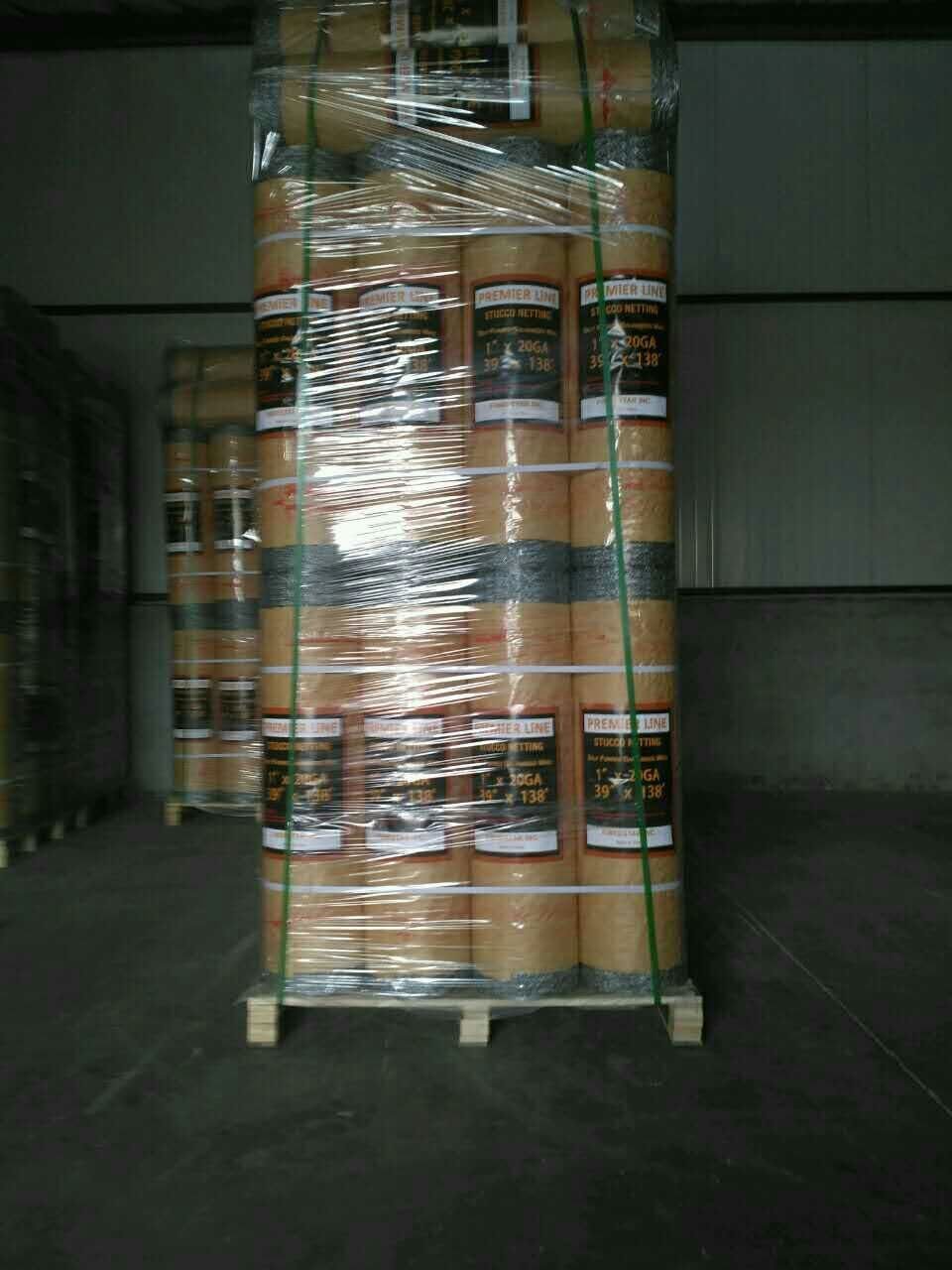

PACKAGE: 32 rolls/pallet or 40 rolls/pallet
APPROXIMATE WEIGHT: 40 lbs/roll
FURRING CRIMPS: 1/8″
17 Gauge
AVAILABLE IN: 1-1/2″ x 17 gauge
AVAILABLE COATINGS: Galvanized wire for corrosion protection
ROLL SIZES: 36″ x 150′ or 36″ x 100′
PACKAGE: 18 rolls/pallet or 24 rolls/pallet
APPROXIMATE WEIGHT: 68 lbs/roll
FURRING CRIMPS: 1/8″
