Palisade Fencing is a kind of commercial fence which is widely used in industry place. Palisade Fencing can prevent people from most of the intrusions.
| "H" Post | 100 x 55 x 5mm |
|---|---|
| Height | 1730 mm, 1830 mm,1930 mm, 2030 mm, 2230mm, 2430 mm |
| Width | 2000 mm, 2500 mm, 2900mm |
| Rail Section | 50 x 50 x 5mm |
| "D" Section | 65 x 3.0mm |
| "W" Section | 75 x 2.0mm |
| Fish Plate | 115 x 30 x 6mm or 140 x 39 x 8mm |
| Brand | Orange wire |
| Certification | ISO9001 |
Palisade Fencing is a kind of commercial fence which is widely used in industry place. Palisade Fencing can prevent people from most of the intrusions.

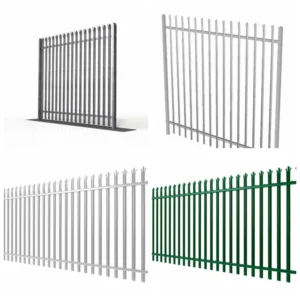

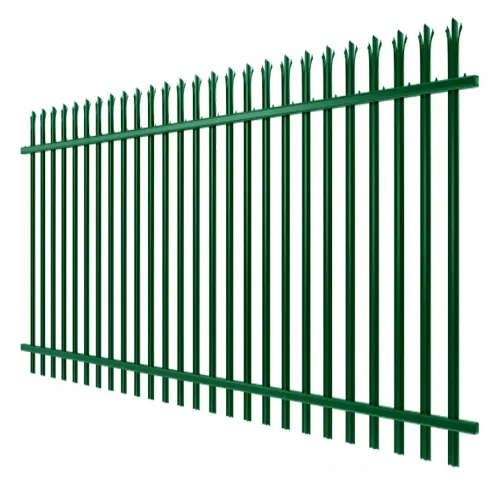

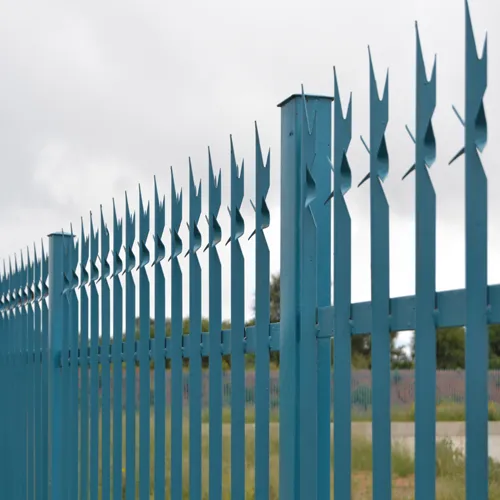

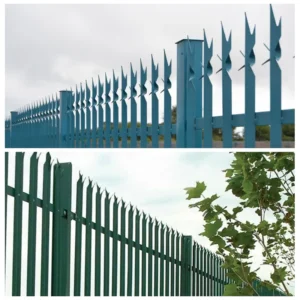

Different from Picket Fencing,there are also three types of tops, including “W” profile, “D” profile and angle iron.
Double wire fence is made by steel wire with a 4mm to 6mm wire gauge. According to the hole size the fencing is divided into Panels feature strong and secure steel pales, available in a full range of top designs, depending on the security and architectural requirements. With standard heights of 8`, 10` and 12`.

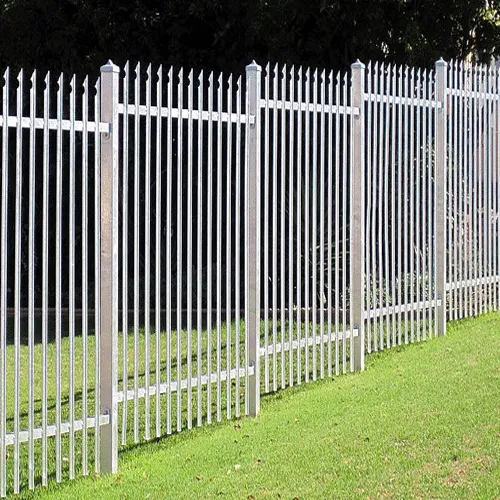

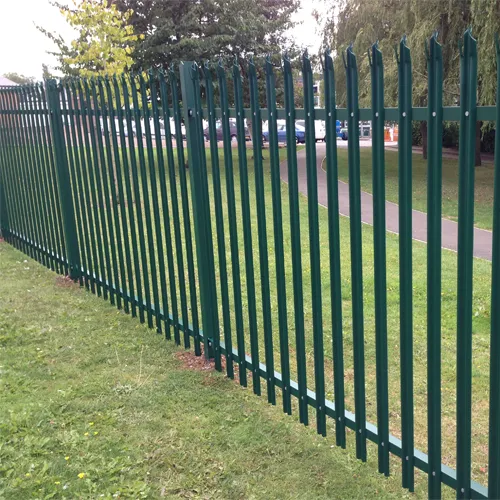

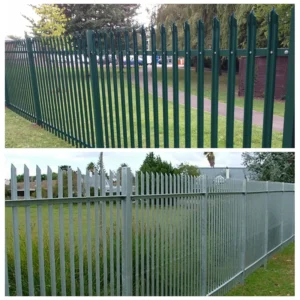

Panels are installed on rails in front of the posts, allowing for a finished appearance that is seamless for fence lines of any length. This configuration allows for fast installation – and means that exact post spacings are not a requirement!
Choose from a wide range of gate styles, including pedestrian and drive Swing gates, as well as Slide and Cantilever gates.
Palisade panels and gates are manufactured with galvanized tubular steel.This coating provides longer protection from U.V. rays and salt spray than either E-Coat or standard polyester coatings.
| Part Name | Specification | Component Quantity | |
| “H” Post | 100 x 55 x 5mm | 1pc | |
| Rail Section | 50 x 50 x 5mm | 2pcs | |
| Pale Section | “D” Section | 65 x 3.0mm | 17pcs |
| “W” Section | 75 x 2.0mm | 17pcs | |
| Fish Plate | 115 x 30 x 6mm or 140 x 39 x 8mm | 2pcs | |
| Saddle head M8 Bolts | M8 x 40mm | 34sets | |
| Cup square M12 Bolts | M12 x 30mm | 4sets | |
